¶ Electronic Throttle Wiring Example

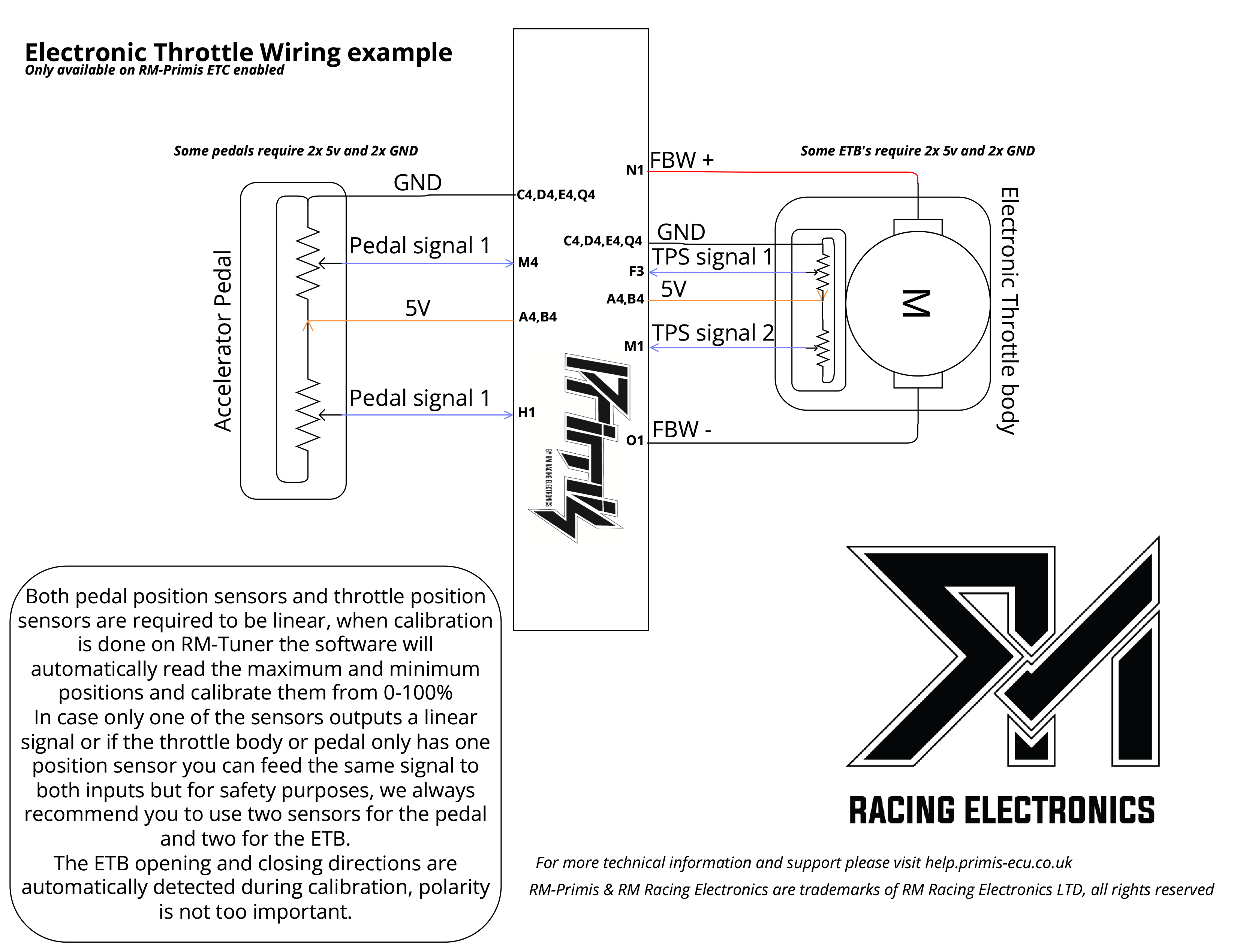

Find below a wiring example of how to use the Electronic Throttle (fly by wire) control on ETC enabled RM-Primis ECU's
Remember that Electronic Throttle is only available when bought along with the ecu, not all RM-Primis have electronic throttle control.
On ECU's with ETC the Spare Volt.Input 5 & Spare Temp. Input 2 are used for Pedal 2 and Pedal 1 respectively.
Click to download PDF format
fbw_wiring.pdf
Click to expand:
